DEVELOPING FLOORPLANS FAST & EFFICIENTLY WITH ARK -AI powered



ARK is the answer to schematic design packs, a boon for architects and developers. The intelligent platform optimizes building designs in a flash, leaving you to make informed, expedited decisions.

ARK is armed with an AI brain that scrutinizes and learns the metadata of architectural designs, spawning variations while accounting for US local regulations and ordinances, ensuring that each project is innovative as well as compliant, championing efficiency, quality, and cost-effectiveness.

Start for free to explore the automated floor plans to make better and Faster decision.

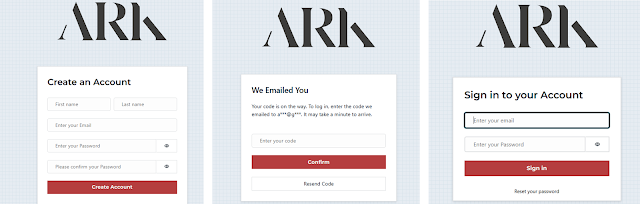

Create a Free Account Login procedure – Enter-Name-Email id

Enter the confirmation code from your emailid. Which will be sent to your email on account activation

Sign in to your account to explore.

In -Complete sign up dialogue box- Fill in the details such as

• Architect
• Select the country
• Project cost –Approximate
• Project Type



Create a New project

• Unit system – Choose Imperial / Metric
• No of floors
• Click Next

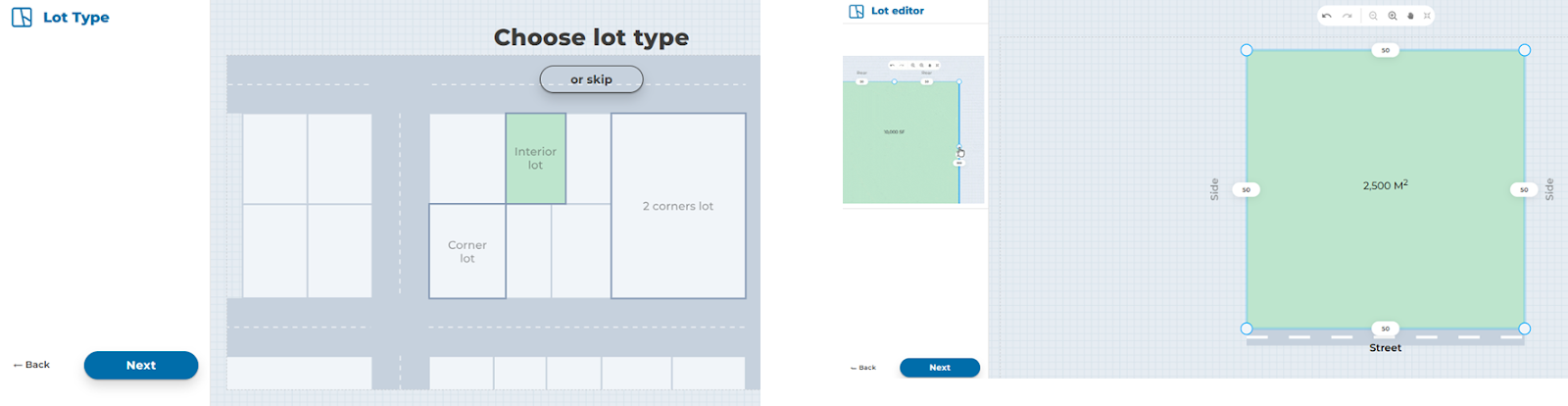

Select the plot

• Select - Interior or Corner plot
• Click next
• Set the dimension of the lot.

Plot size alteration if required can be done

• Right Click on the point –Remove button pops up if required remove the point
• To alter the Line –select the line and Right click on the line.
• Can make changes to setting
• If need to add street to that side of the lot line can add in.
• Width of the street can also be altered as Narrow or wide

Typical Floor profile

Select the shape of profile you require and edit the dimension that fits inside your plot

Next you have to generate you will be directed to Schematic section

Can Create a basement level by clicking on the cellar floor plan.

It can also be deleted if not required by selecting and clicking on remove command.

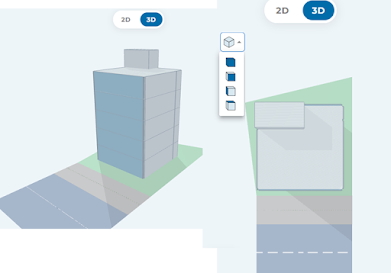

Can toggle between 2D / 3D

It will display options for the core location. Can select based on your design provision.

Can form enclosed area

• Create- Enclosed area-Rectangle area
• Using Add Tab can include elevators, Staircase, service room etc.
• Using View Tab can generate the report for the project which you have done.
